FL20 Handheld Portable ECG Monitor

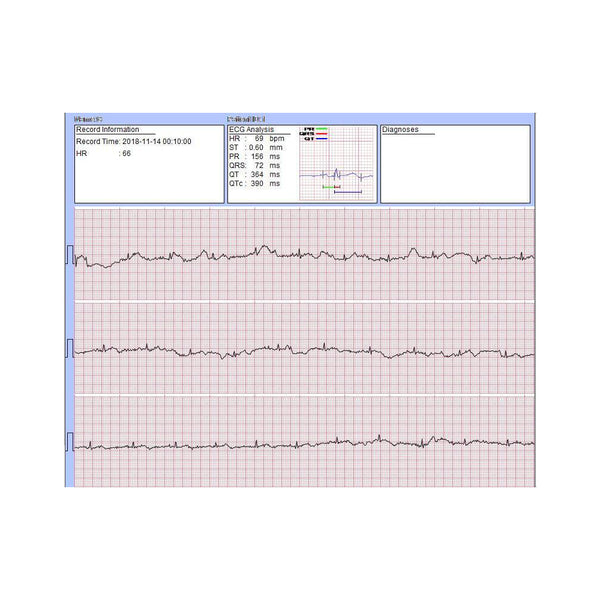

products/FL20-ECG-Analysis_resized_090120.jpg

products/FL20-ecg-monitor-2_resized_090120.jpg

FL20 Handheld Portable ECG Monitor

$99.00

Description Reviews

The FL20 Handheld ECG Monitor’s user-friendly design is suitable for home healthcare use. This heart monitor records one-channel ECG measurements in under 30 seconds. All individuals, especially those who may suffer from cardiovascular diseases such as hypertension, diabetes, coronary heart disease, those with symptoms of heart-throb, stuffy chest, suffer from adiposity, and middle-aged individuals will receive an accurate evaluation using this instrument.

Regular and frequent measurements of heart health conditions will help individuals and their doctors recognize risk factors in their early stages and act accordingly. For clinical ECG examination, users can reference the detailed heart data recordings directly on the device. The FL20 automatically evaluates results based on detected heart data.

The FL20 uses USB to transfer data to a PC. With the included software, results can be reviewed, managed, and saved. Each ECG recording includes 30-seconds of waveform and analysis data. The machine’s built-in storage holds recording results for up to 200 tests. Know your heart; know your health.

Features:

Small, portable, and easy to operate
Completely cable and electrode free
Fast measurement in just 30 seconds

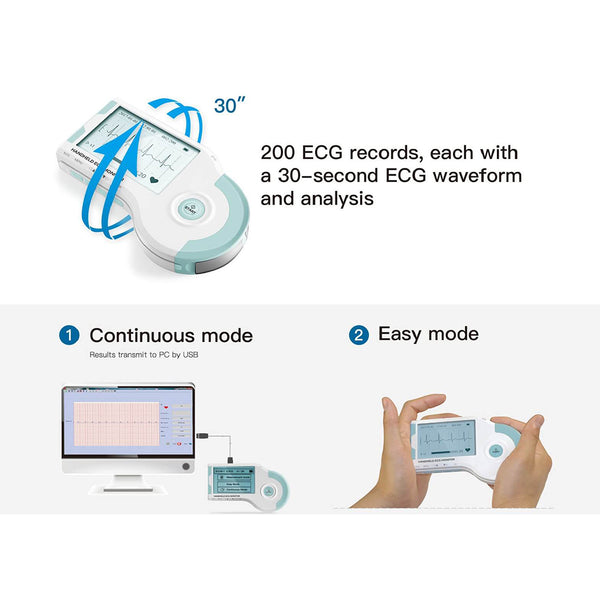

200 recordings of ECG Strips, each record holds 30-seconds of ECG waveform and analysis results
Measurement of one channel ECG anytime, anywhere you like

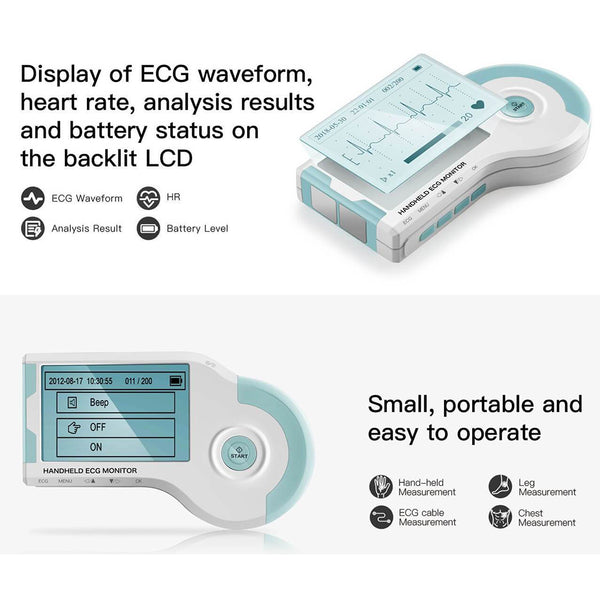

Display of ECG waveform, heart rate, analysis results, and battery status on the backlight LCD
Transfer measurement results to PC via USB
Auto power-off after 60 seconds without key press
Auto-evaluation based on detected heart data
Dual measuring modes
2 AAA batteries provide power for over 500 measurements
Review data

Accessories:

A hanging cord
2 batteries
A pouch
A User Manual
USB Data cable & Software (optional)
ECG cable (optional)

Software Download (87 KB)

Extended Specifications:

ECG Bandwidth: 0.05Hz - 120Hz (-3dB)

ECG AD Resolution: 10 bit

ECG sampling Rate: 250Hz

ECG Heart Rate Measurement Range: 15bpm - 300bpm

ECG Accuracy of Heart Rate Measurement: 15bpm - 100bpm (1) 100bpm - 300bpm (2)

Weight: 140g (including batteries)

Dimensions: 130mm(L) x 65mm(W) x 20mm(H)

Operating Temperature: 0°C - 50°C

Storage Temperature: -20°C - 60°C

Operating Humidity: ≤90%RH

Atmospheric Pressure: 86kPa - 106kPa

Battery Type: 2x AAA Alkaline batteries

Supply Voltage: 2.0V DC - 3.2V DC

Max Working Current: 50mA

Safety Classification: IEC 60601-1

Type of Protection: Internally powered equipment

Degree of Protection: CF

Display: FSTN LCD 240x160

Data and ECG strips storage

HR Storage: 10 days heart rate data storage

ECG Strips: 24 hours Measurement results storage

Good device, but comes with instructions flaw.

If the device had better instructions, I would have given it a perfect score. I had to figure out how some of the functions worked on my own because the included instructions were not very clear. I'm still trying to learn some of the functions at this time. Do you think you can get with the manufacturer and get a more clear set of instructions? If so, that would make using this a snap & make it a much better value. With better instructions, this may become one of the best portable ECG devices on the market.

FROM TEXAS.....NOW THAT'S THE WE THINK...TO SAVE TIME PREFILL YOUR OWN RATINGS, ALBEIT WE AGREE AND LIKE Y'ALL! WE WILL DO BUSINESS AGAIN. BEST REGARDS!!!!

Software a little confusing

I've had the FL-20 for a couple of weeks now and have taken several readings. I haven't tried the continuous reading yet, probably because I'm not clear about how it works. I do like the item and can tell the charts pretty well reflect what's going on at the time. I have a lot to learn about the charts. I am in need of a heart valve replacement, and that was the reason I bought this item. Haven't shared any reading with my Doctor yet, but will before the end of the week as we have a video visit on Friday. I don't know if she will applaud the results I send her, or poo-poo them. Whatever happens there, I'm still happy I have it. And yet the software is confusing. I think there is a manual on the CD they send you with it, but I found one on the internet first - not sure which one helped the most. They are different versions.

Gives much of peace of mind to know i can check my heart rhythm at any time. Thank you.
