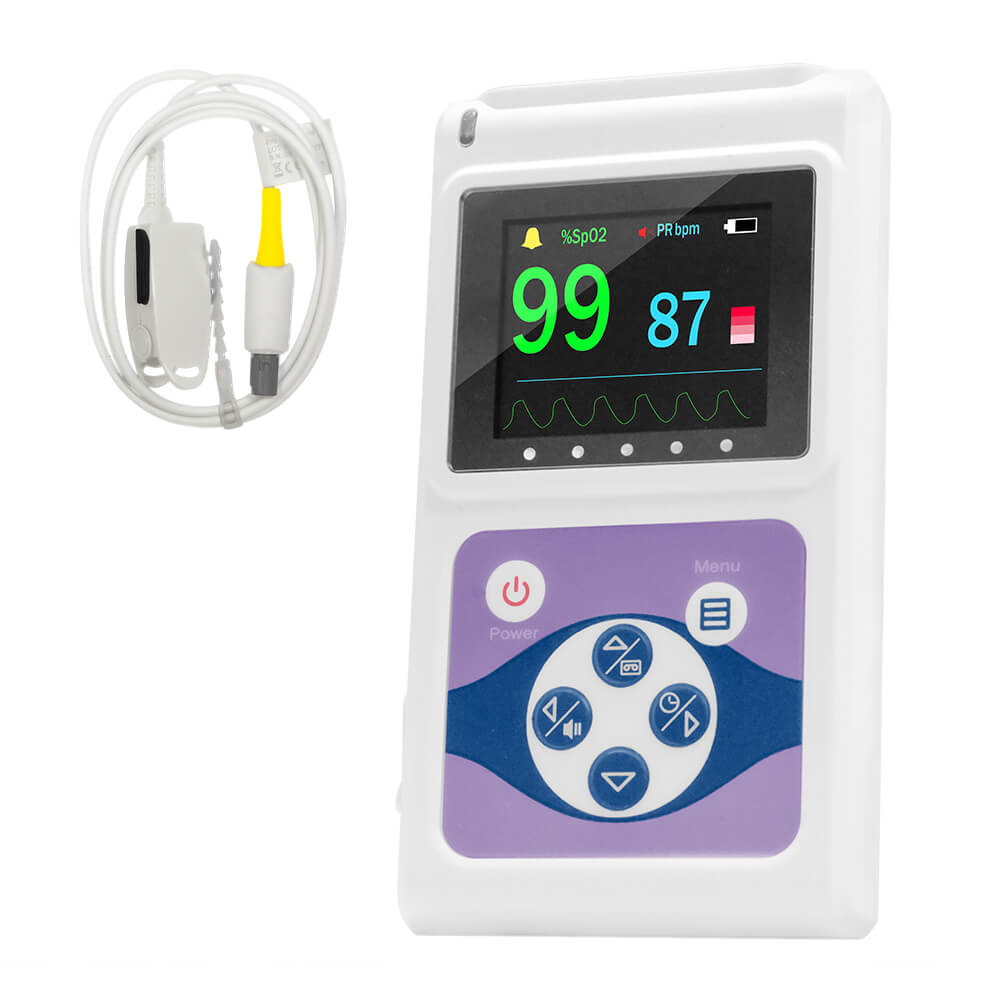

The CMS-60D Pulse Oximeter from Facelake is FDA-approved to be used for accurate measurement of SpO2 and pulse rate. These activities in the body are monitored through the device’s padded probe sensor that comfortably fits on the user’s finger. A color OLED screen displays measurement results as a numeric value, bar graph, and waveform animation. This battery powered pulse oximeter features a small design and low-power consumption for portability.
The included Clip Probe and other SpO2 sensors (not included) are compatible with the CMS-60D’s communication cable socket. The sensor’s accuracy ranges from ±2bpm for pulse rate and ±2% for SpO2 activity. The onscreen menu includes options for probe usage and measurement readings.

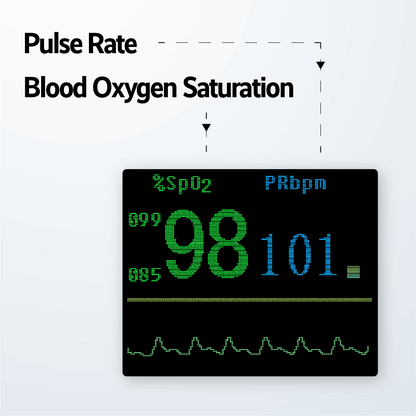

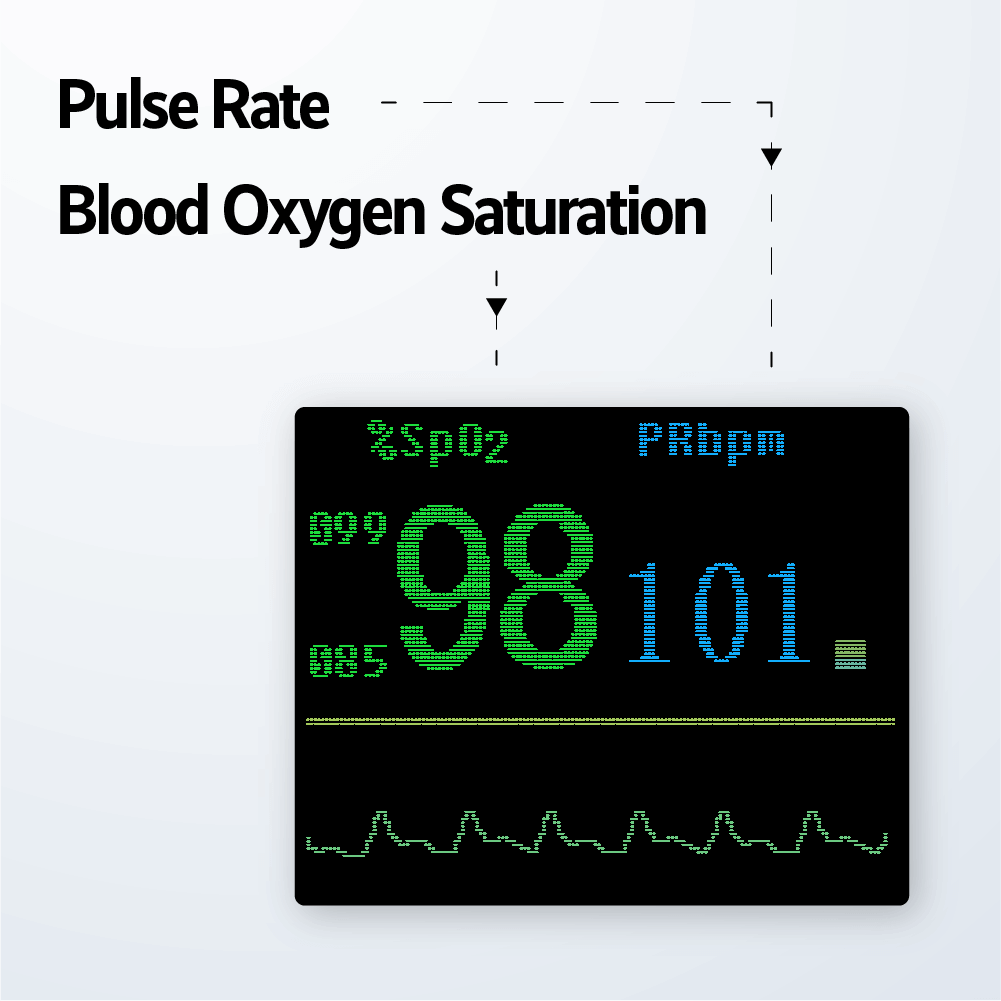

The 1.8” Color OLED display shows measurement information in sharp text and images. The adjustable brightness level enables comfortable viewing in the presence of dark or low-light conditions. The CMS-60D’s onscreen functions are presented in a simple and easy to navigate layout.
An audio alarm feature alerts the wearer to readings that are detected outside of the range that has been set by the user. The CMS-60D’s feature set also includes a clock function and pulse rate tone indicator. The device can be used with the “Routine Check Mode” or “Continuous Monitoring Mode,” based on the user’s preference.

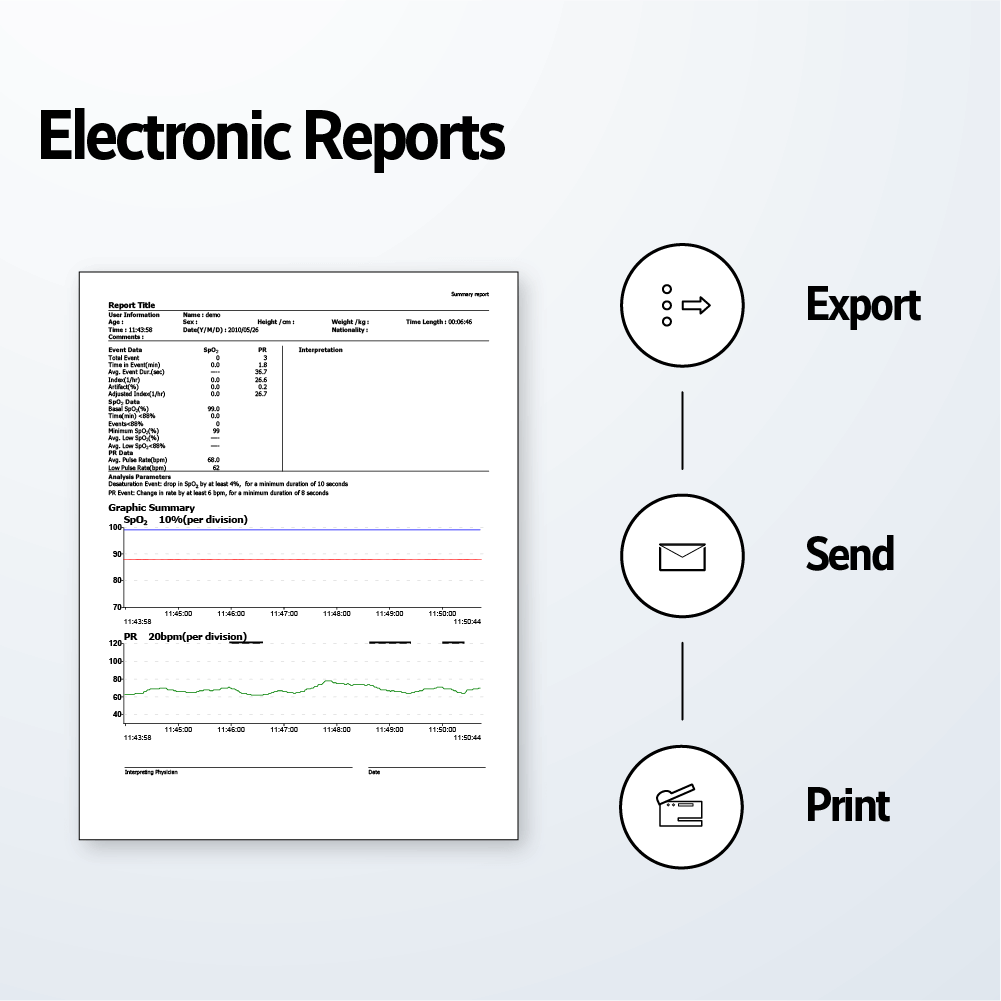

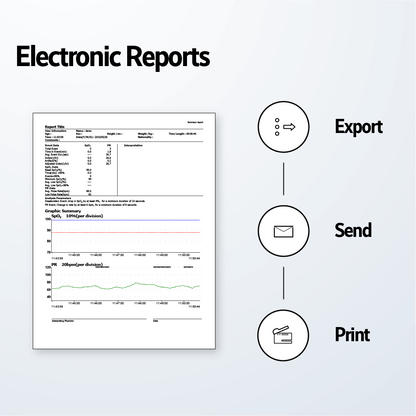

The user’s data history can be transferred to a computer for detailed reference or for analysis by a medical health professional. The CMS-60D includes software and a data transfer cable for linking the device to a computer. Measurements are displayed in real-time when linked to the software.
- CMS-60D Unit
- USB Connector Cord
- Instruction manual
* Routine Check Mode and Continuous Monitoring Mode
* Sync with PC based Software (Win XP and Win Vista)
* Display:1.8" Color TFT
* Display Mode: Display Direction adjustable
* Indicator: Power indicator, Alarm sound, Pulse tone
* Interface: Socket for connecting SPO2 sensors and Socket for communication cables
* Power Supply: 2 AA Size Batteries DC 3V, <60MA
* Record: Data can be recorded up to 24 hours
* Alarm: Adjustable High and Low limits.
CMS-60D Product Video
- SpO₂ Parameter Specification
Measuring range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: ±2%, Below 70% unspecified
- Pulse Parameter Specification
Measuring range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
- Battery Requirement
- Oximeter Probe
Wavelength: 660nm 880nm
- Dimensions and Weight
Dimensions: 110(L) x 60(W) x 23(H) mm
Weight: About 122g (including AA batteries)
