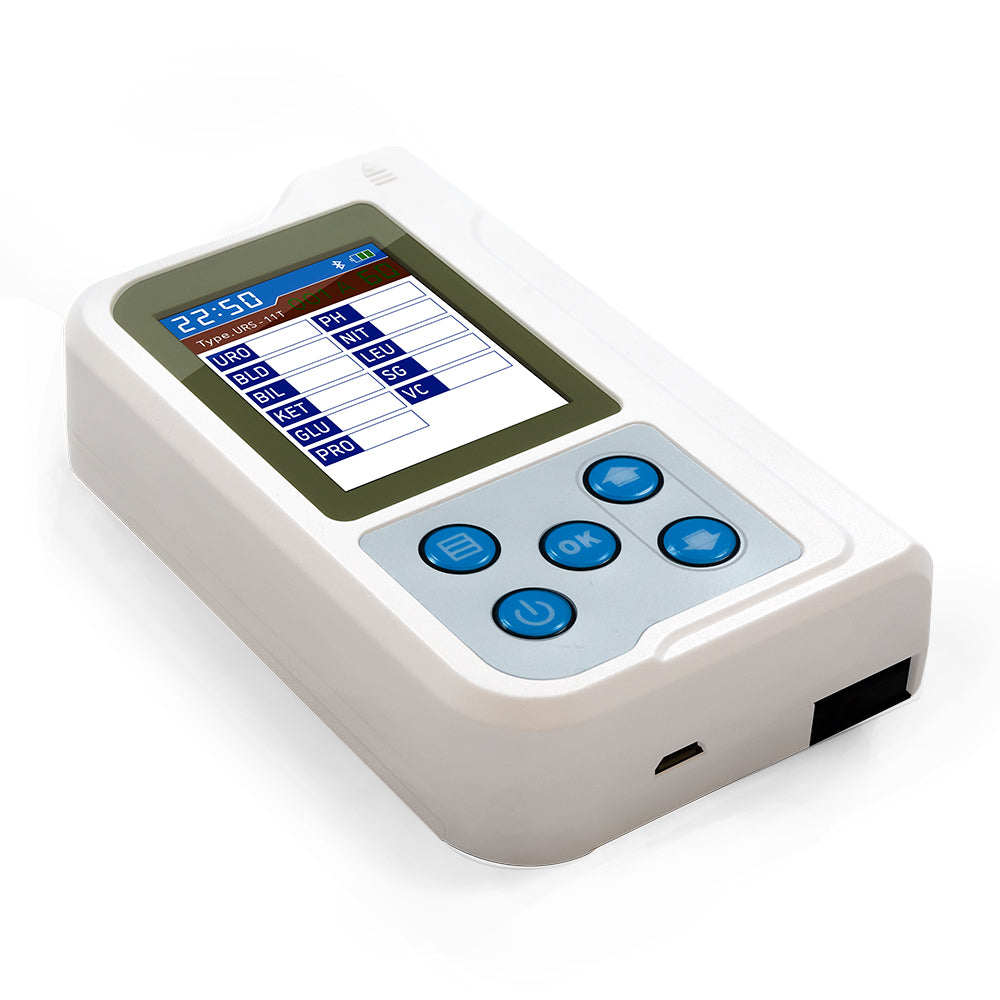

The FL-401 Urine Analyzer is a high-precision handheld instrument developed from research based on modern optics, electronics, computer science, and other advanced technologies for a clinical inspection of urine. The FL-401 Urine Analyzer analyzes urine samples through the use of the compatible urine test strips. The test strips produce a chemical reaction that the machine reads and measures. The FL-401 is designed based on modern photoelectric and microprocessor technology for clinical inspection of urine samples.
The user-friendly onscreen menu contains options for managing patient profiles and viewing test details. The FL-401 integrates with the smartphone app to wirelessly transfer measurement data to other devices via Bluetooth. Up to 500 test results can be stored and managed on the device.
After inserting a test strip into the machine’s test strip tray, pressing the “OK” button while viewing the main menu starts the test. A 60-second timer then begins and counts down while completing the test. After finishing the analysis test, the analyzer displays the measurement results on the color LCD.
Urine strip compatibility for the FL401 includes 10 item, 11 item, 12 item, and 14 item test paper. Additional functions include auto-character input, audio prompts, RGB tricolor testing, and automatic storage of test data recordings. The built-in lithium ion is rechargeable via USB or the included power adapter.
Included is the FL-401 device, one bottle of 100 urinalysis test strips, owner’s manual booklet, USB cable, and charging power adapter.
This item is non-refundable, Only exchange available
Glucose (GLU), Bilirubin (BIL), Specific Gravity (SG), Ketones (KET), Blood (BLO), Protein (PRO), Urobilinogen (URO), Nitrates (NIT), Leukocyte (LEU), Intravascular Contraction (VC), Ph Acidity (PH), Malonic Acidemia (MAL), Creatinine (CR) and Urinary Calcium (UCA) in urine can be tested by using special test strips. This device is applicable for use in hospital, community health service, clinic, epidemic station and family homes, etc.
What's Included in Package
- FL-401 Precision Urine Analyzer with internal lithium battery

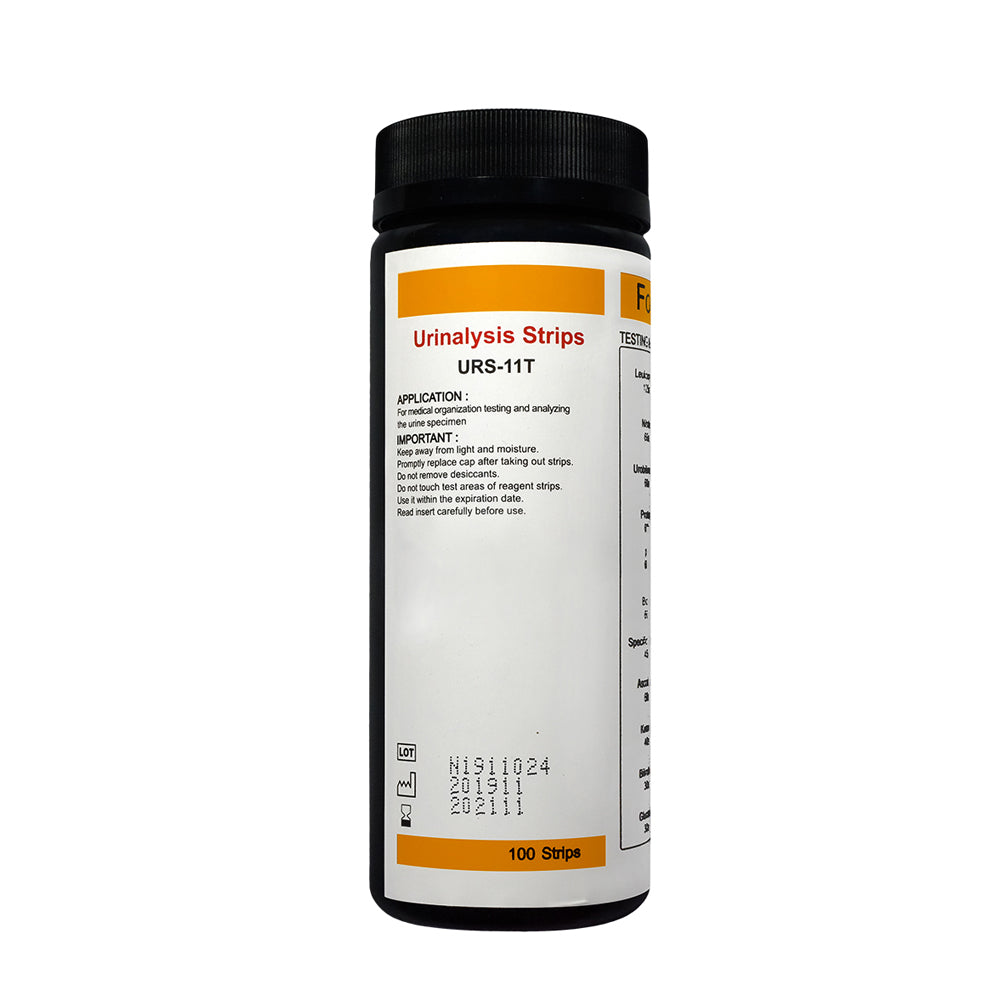

- Urinalysis Test Strips
- Owner's Manual Booklet
- USB Cable
- Charging Power Adaptor
- Portable, pocket sized
- High-luminance, white LED
- Long life and stability
- Displays contents on the 2.4'' LCD
- Optional languages: Chinese and English
- User-friendly interface
- Optional units: international unit, conventional unit, and symbol system
- Monitoring of the complete test process
- Auto-character input and audible prompts
- Compatible with 8-, 10-, and 11- parameter test strips
- Standard micro USB interface/Bluetooth interface
Main Features Diagram
- LCD Display: Displays contents on the 2.4'' LCD
- Micro USB Port: AC adapter power supply and data transmission port
- Keyboard: Operate the analyzer with the 5-key touch control keyboard
- Test Paper Tray: Place the strip into the tray to be tested

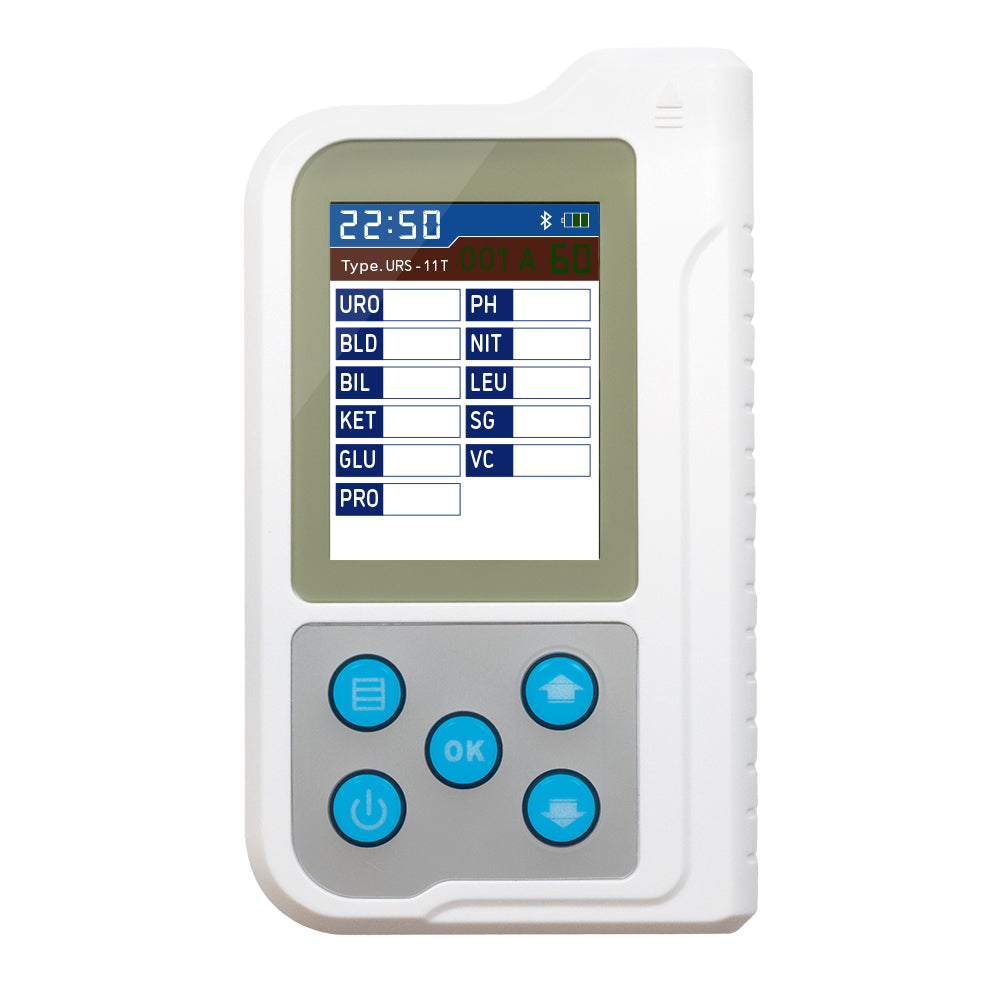

FL-401 Screen Features
- Current Time
- Type of Test Paper
- Multiple Test Items
- Bluetooth Connectivity
- Current Battery Life
- Countdown Timer
- Current Test Number
- Current User Profile
Sliding Test Strip Tray
PHMS Contec Medical Systems - iPhone & Android Application
This application is used for a variety of medical testing equipments of our company.
It can be used to receive data by Bluetooth and upload the data to servers,and view health records,trend charts,health suggestion and so on.
Now the application supports the following devices:
- Glucose meter
- Urine analyzer
- Portable ECG
This application can be associated with Apple HealthKit,the measurement results will be synchronized to Apple HealthKit(iPads do not support). Open Apple's HealthKit --> Sources --> PHMS，to set items which you allow "PHMS" to write data.
Click here for Google Play application store link
|Test Items: GLU, BIL, SG, KET, BLD, PRO, URO, NIT, LEU, VC, PH, MAL, CR, UCA (optional based on the type of test strip)|
|Test Principle: RGB Tricolor|
|Repeatability: CV less than or equal to 1%|
|Stability: CV less than or equal to 1%|
|Working Mode: One-step|
|Test Speed: Greater than or equal to 60 tests/hour|
|Data Storage: Storage of 500 sample data, which can be queried by test date, sample No. and user name|
|Interface: Standard MicroUSB interface, Bluetooth interface (Optional)|
|Power Supply: DC5V, 1A, built-in rechargeable lithium battery|
|Battery: Built-in rechargeable lithium battery 3.7V, 1900mAh|
|Power Adapter: AC 100V~240V, 50/60Hz|
|Dimensions: 126mm(L) x 73.5mm(W) x 30mm(H)|
|Working Environment Temperature: 10°C - 30°C|
|Working Environment Relative Humidity: Less than or equal to 80%|
|Working Environment Atmospheric Pressure: 76kPa - 106kPa|
|Specified EMC, Climate Environment Description: Don't use the device in environment with direct sunlight, the front of open window, flammable and explosive gases, near the heating or cooling equipment, near strong light-source, otherwise it will influence normal use of the device|
|Storage Environment Temperature: -40°C - 55°C|
|Storage Environment Relative Humidity: Less than or equal to 95%|
|Storage Environment Atmospheric Pressure: 76kPa - 106kPa|
|Specified EMC, Mechanical Environment Description: The packed device should be stored in room with no corrosive gases and good ventilation. Temperature: -40C - +55C, relative humidity: less than or equal to 95%, and avoid severe impact, vibration, rain and snow during transportation|
