The FL30 EKG Monitor is used to take EKG readings without external wires, cables, or gels. This handheld ECG monitor uses built-in sensors to take measurement readings from an individual. The monitor detects heart rate, rhythm, and symptoms within 30 seconds.

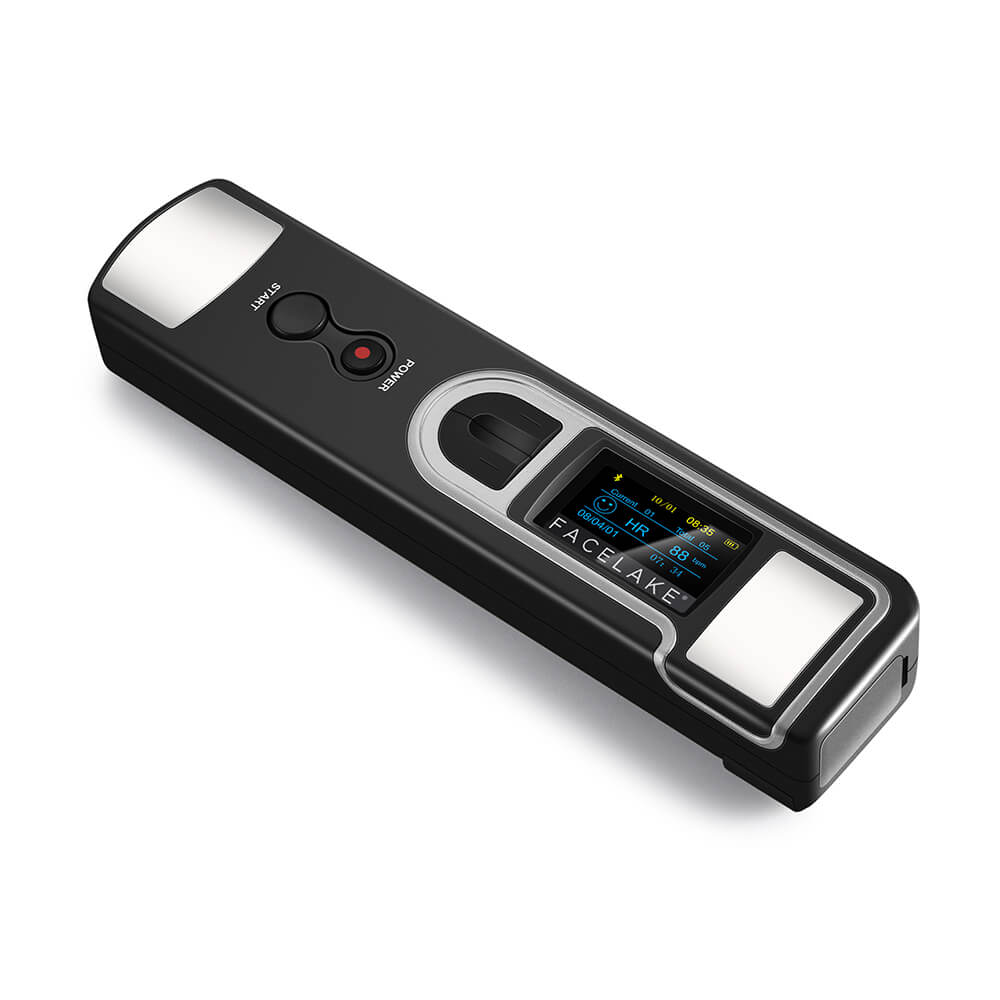

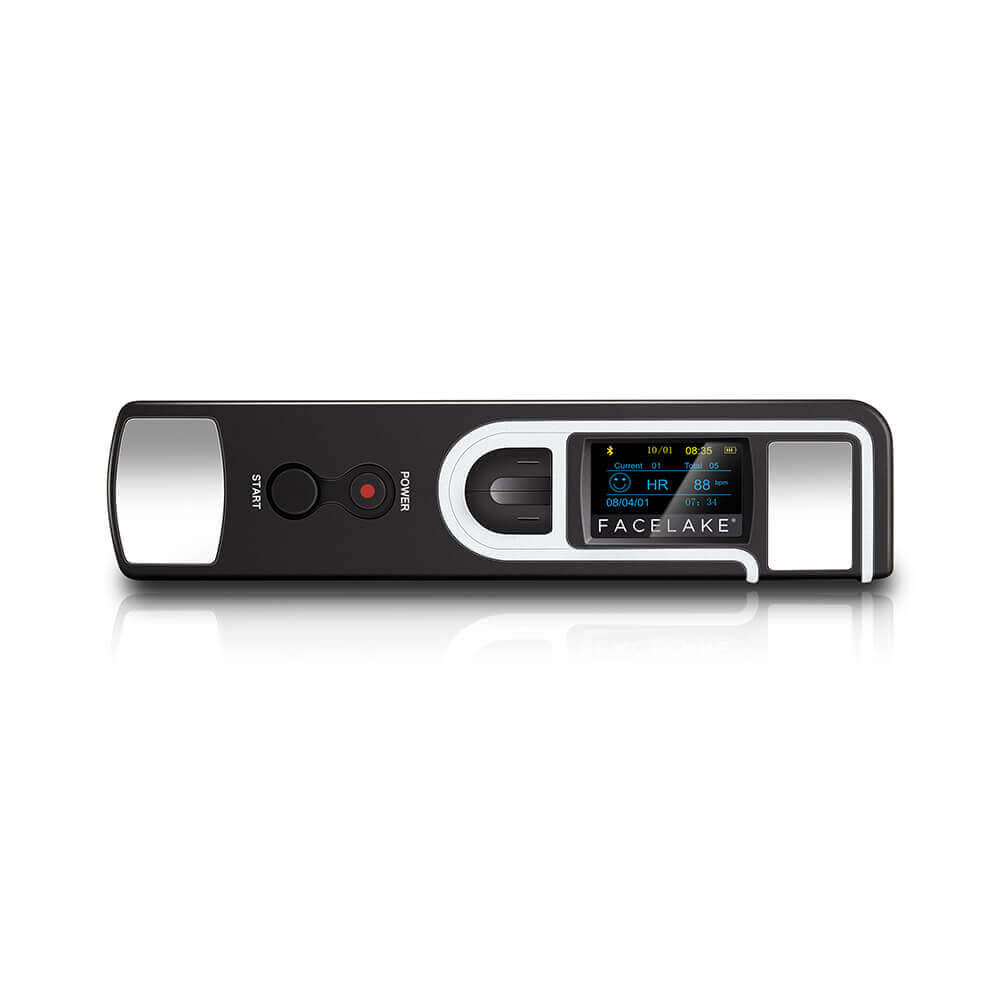

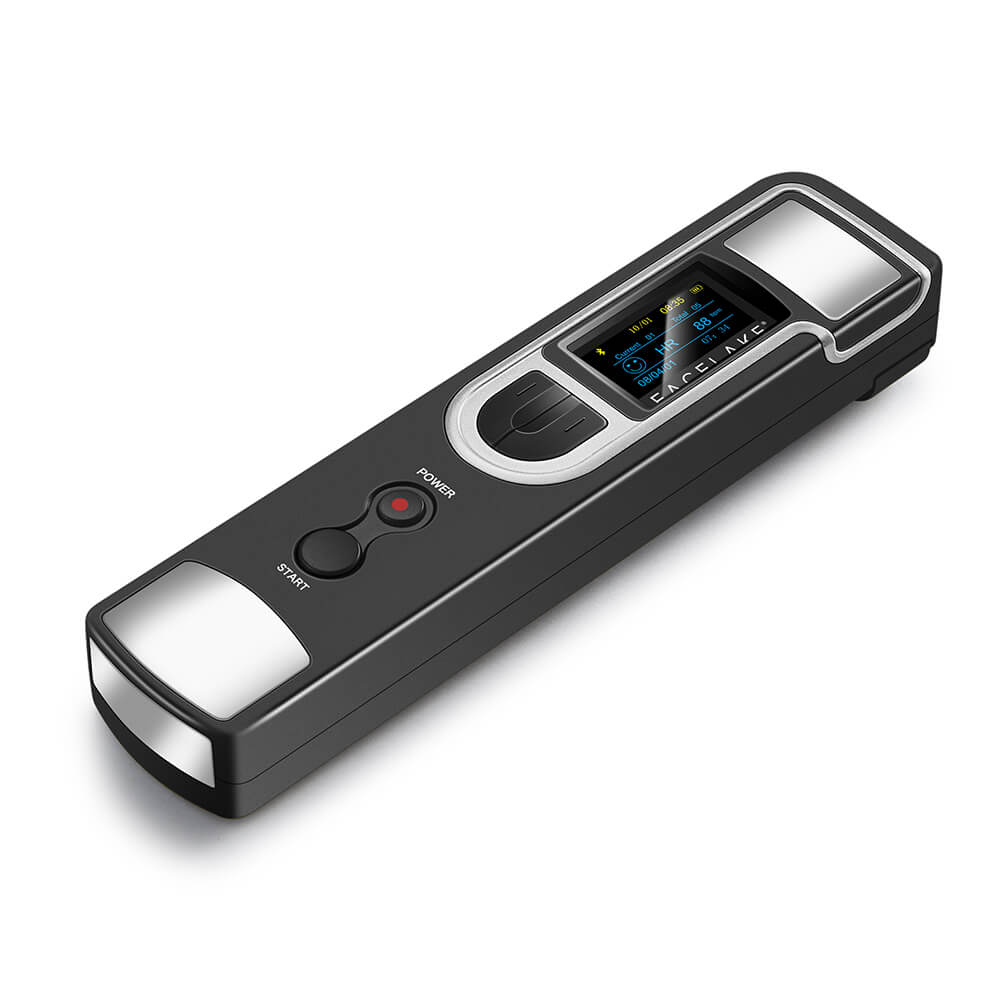

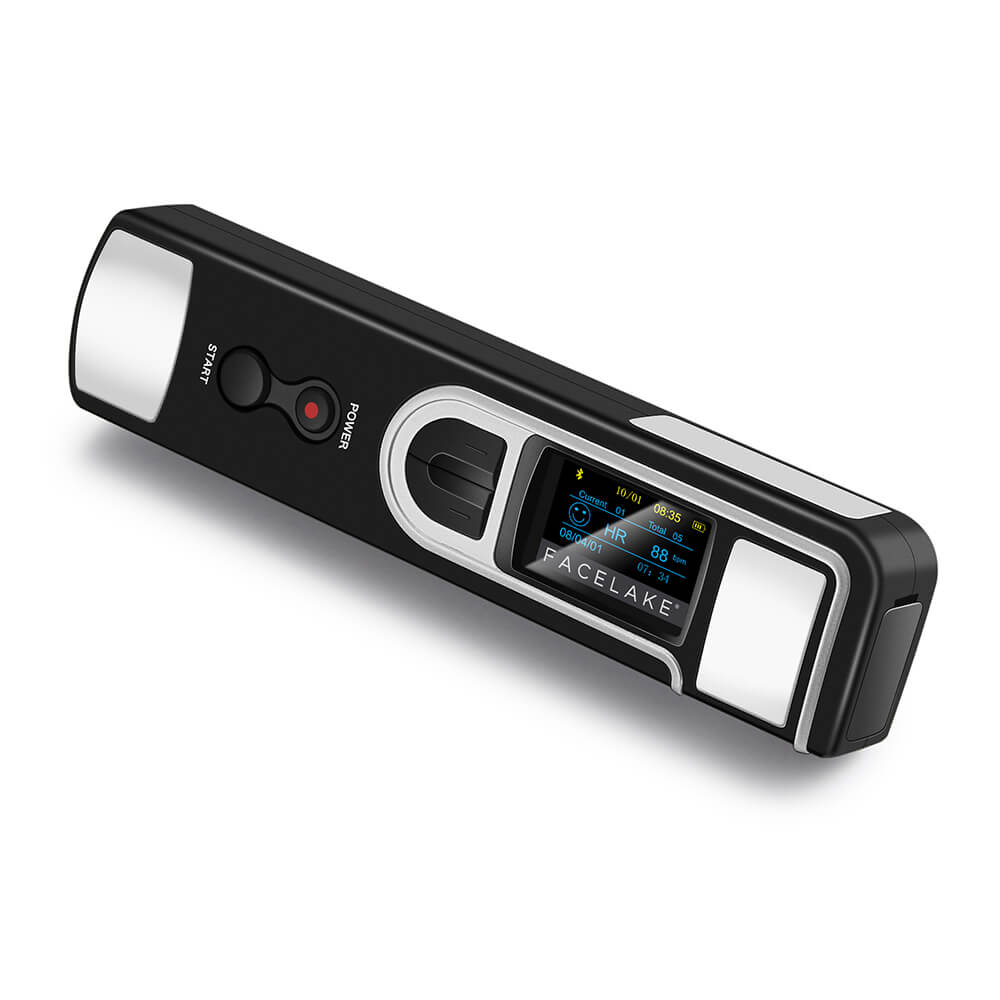

This device’s portable design allows the user to take a measurement reading anywhere. The monitor comfortably fits in the user’s hands without causing discomfort or strain when gripping the sensors. The sharp backlit display faces the user during the measurement test. The FL30 EKG heart monitor displays a real-time graph animation of heart rate activity.
This personal EKG monitor includes an auto-shutdown feature, an auto-evaluation feature, and measurement recording history. This device stores data for up to 20 measurement readings on the internal memory. Onscreen instructions guide the user through the steps of the ECG test.
Note: This device is not intended to diagnose or treat any medical condition or disease. Data on the device is for reference purposes and is not intended to substitute for advice given by a physician, pharmacist, or other licensed healthcare professional. You should not use this information as self-diagnosis or for treating a health problem or disease. Contact your healthcare provider immediately if you have any cardiac symptoms. This device is intended to be used for initial evaluation as reference only.

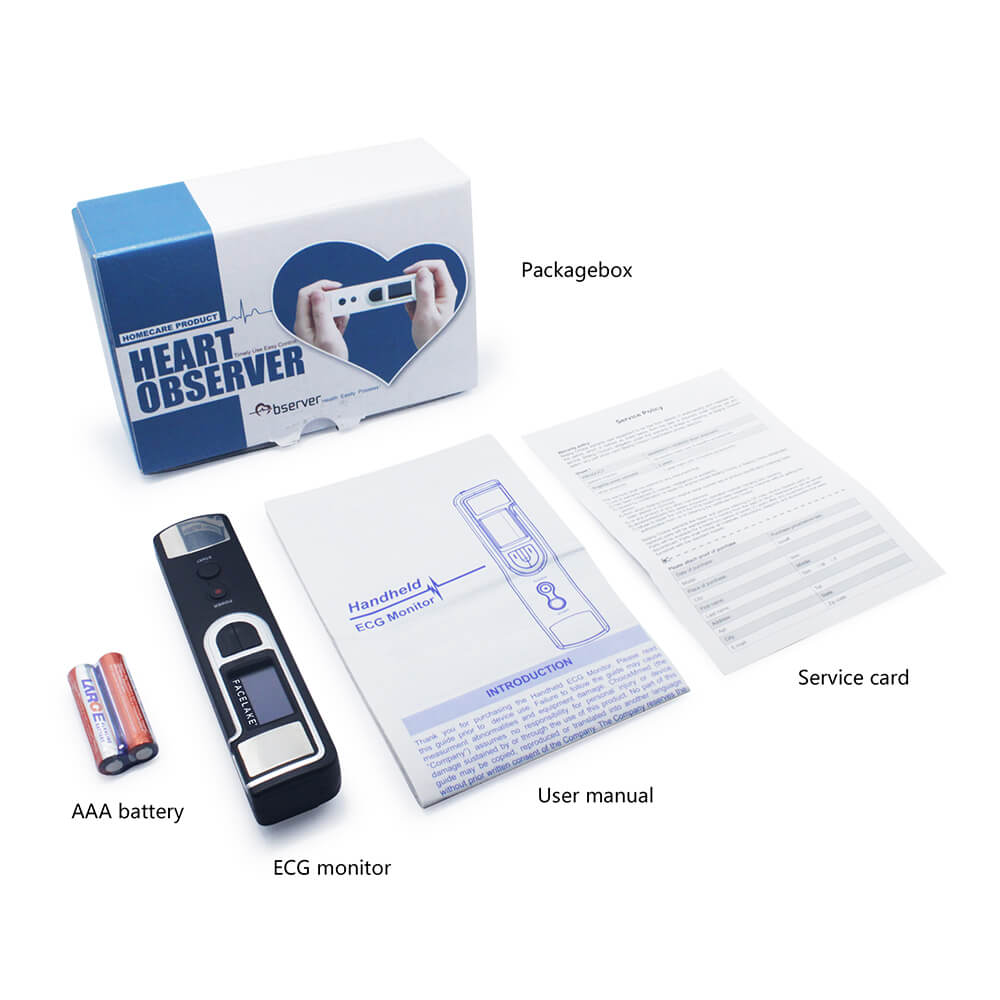

Two AAA-size Batteries
One Instruction manual
One sheet of material
One Quick Operation Guide
|Dimensions: 130mm (L) * 30mm (W) * 20mm (H)|
|Weight: 110g (with alkaline batteries)|
|Operating Temperature: 5°C - 40°C|
|Storage Temperature: -20°C - 70°C|
|Operating Humidity: 15% ~ 93%, no condensation|
|Storage Humidity: ≤93%, no condensation|
|Storage Atmospheric Pressure: 86kPa - 106kPa|
|Operating Atmospheric Pressure: 70kPa - 106kPa|
|Screen Type: OLED|
|Parameter: Heart Rate|
|ECG Bandwidth: 1Hz - 40Hz|
|ECG Sampling Rate: 250Hz|
|ECG Measuring Range: 30bpm - 240bpm|
|ECG Measuring Accuracy: 30bpm - 100bpm ≤ ±2bpm, 101bpm - 240bpm: ±4bpm or 2% (the smaller)|
|Data and heart rate strips storage|
|Heart Rate Strips: 20-measurement result storage|
|Power Supply: AAA Alkaline batteries|
|Type of Protection: Internally powered equipment|
|Degree of Protection: CF Type|
|Safety Classification: IEC 60601-1|
