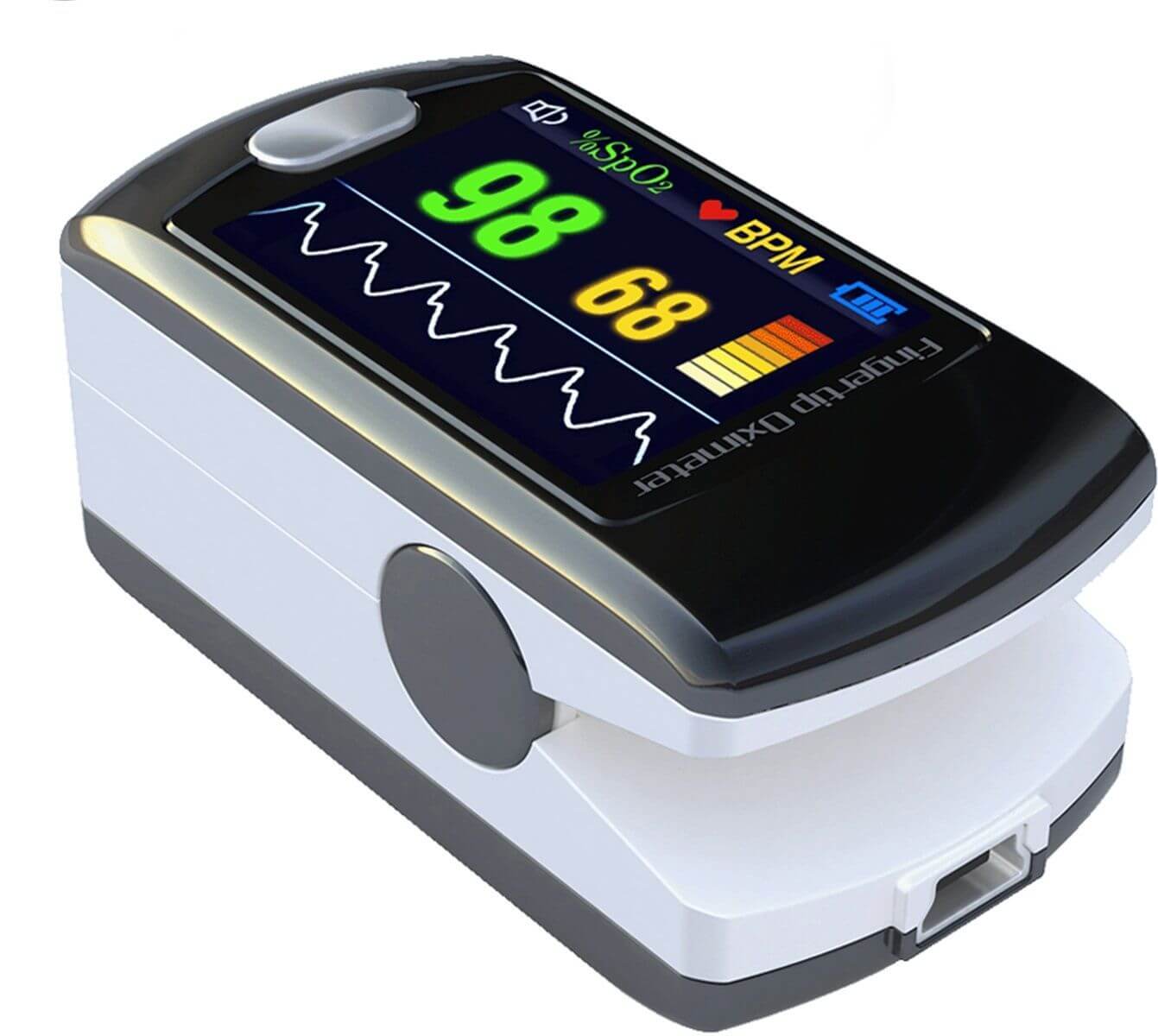

CMS-50E Fingertip Pulse Oximeter with Alarm

$79.00 79.00

Available Options

The CMS50E Fingertip Pulse Oximeter is an FDA-approved device for spot-checking blood oxygen saturation levels and pulse rate. The CMS50E’s padded finger chamber comfortably fits any finger size and delivers a swift reading. This portable device uses a rechargeable battery that provides up to 20 hours of power when fully charged. A single button located on the front of the oximeter controls all operations. This pulse oximeter was made for ease of use by physicians, nurses, patients, athletes, and pilots.

The CMS50E pulse oximeter uses a small but powerful measurement system. The device accurately measures oxygen saturation (Sp02) and pulse rate directly from any finger. This blood oxygen sensor detects low oxygen levels in the blood, even when the wearer is not actively interacting with the device. The oximeter does not require any external wires or probes when taking measurements.

This oximeter’s compact and lightweight design makes it ideal for travel or storage in a small space. Detailed SpO2 and pulse rate measurement information displays on the bright, multicolored screen with sharp text and images. Measurements update on the device’s screen as a numeric value, bar graph, and waveform animation. These data visualizations present a model of the wearer’s blood oxygen levels and pulse rate for helping the user understand the results. Screen brightness is adjustable to allow for use in a wide variety of lighting conditions.



Features

Auditory and visual alarms in the device alert the user when oxygen levels in the blood go outside the user’s upper/lower range. Additional alarm types include low voltage level alerts or improper device placement. The optional pulse sound setting indicates the wearer’s current pulse rate.

Unlike most finger oxygen sensors, the CMS50E features a rechargeable lithium-ion battery. The built-in battery is rechargeable via USB or by plugging the device into the included power adapter. A battery icon indicator provides a charge status level for the device’s rechargeable battery.

The CMS50E can store up to 24 hours worth of information data history. This oxygen monitor integrates with the included software to transfer data to a computer. With this software, users can export their data to save or share results with a medical professional or physician. The CMS50E includes a data transfer cable for connecting the pulse oximeter to your computer.



Three Different Models
  1. - CMS50EW: With Bluetooth
  2. - CMS50E: With Wireless Transmitter & Receiver
  3. - CMS50E Basic: No Wireless Transmitter, Receiver or Bluetooth

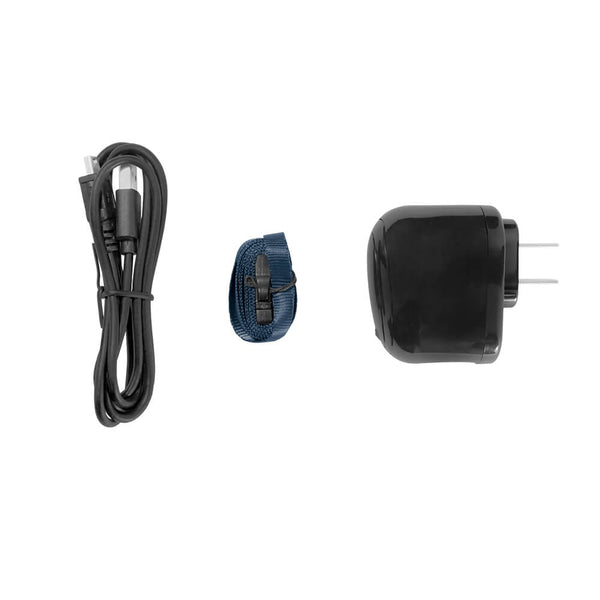

Package Includes:

  1. CMS-50E Unit
  2. Neck/wrist Cord
  3. DC Power Adapter Plug
  4. USB Connector Cord
  5. 3.7V Rechargeable lithium battery (Long Battery Life)
  6. Instruction manual
  7. If ordered, the Wireless Transmitter/Receiver

 Software Download (15.6 MB)



Features List

  • Integrated with SpO2 probe and processing display module
  • Compact and portable, allowing it to be taken with you throughout your day
  • Simple operation
  • Low power consumption
  • Operation menu for settings adjustment
  • SpO2 value display
  • Pulse rate value display
  • Bar graph display
  • Pulse waveform display
  • Display mode options
  • Adjustable screen brightness
  • Pulse rate sound indication
  • Upper/lower alarm range threshold settings
  • Battery capacity indication
  • Low-voltage indication
  • Data transfer to PC
  • Real-time data display on PC
  • Auto-shutdown function automatically powers off the device within
    5 seconds of finger removal
  • RF Wireless communication function (option)
    (only applied for Ver6.6R or above)
  • Connected with an external oximeter probe (option)
    (only applied for Ver6.6R or above)



CMS-50E Product Videos




Extended Specifications

Warranty: 1 Year
SpO2 Range: 0% - 99%
SpO2 Accuracy: 70% - 99%, ±2%, 0 - 69%, unspecified
SpO2 Resolution: 1%
SpO2 Measurement Range: 0% - 100%
Pulse Rate Accuracy: ±2bpm or ±2%
Pulse Rate Resolution: 1bpm
Pulse Rate Measuring Range: 30bpm - 250bpm
Power Supply Requirement: 3.6V DC - 4.2V DC
Battery Type: Interior lithium battery, B F
20 hour working life expected per charge
Charge and discharge no less than 500 times
Operating Temperature: 0°C - 50°C
Storage Temperature: -40°C - 60°C
Operating Humidity: 15% - 95%
Storage Humidity: 5% - 95%
Operating Pressure: 700hPa - 1060hPa
Storage Pressure: 500hPa - 1060hPa
Dimensions: 57 x 32 x 30 mm
Weight: 1.8oz (50g with lithium battery)
Display Type: 1.36" 65k color OLED display
Display Resolution: 128x96
Parameter: SpO2 (2-digit), PR (3-digit)
Bar Graph (6-segment), pleth waveform
Alarm Types: Measurement out of set limits, Low voltage, Finger out of position
