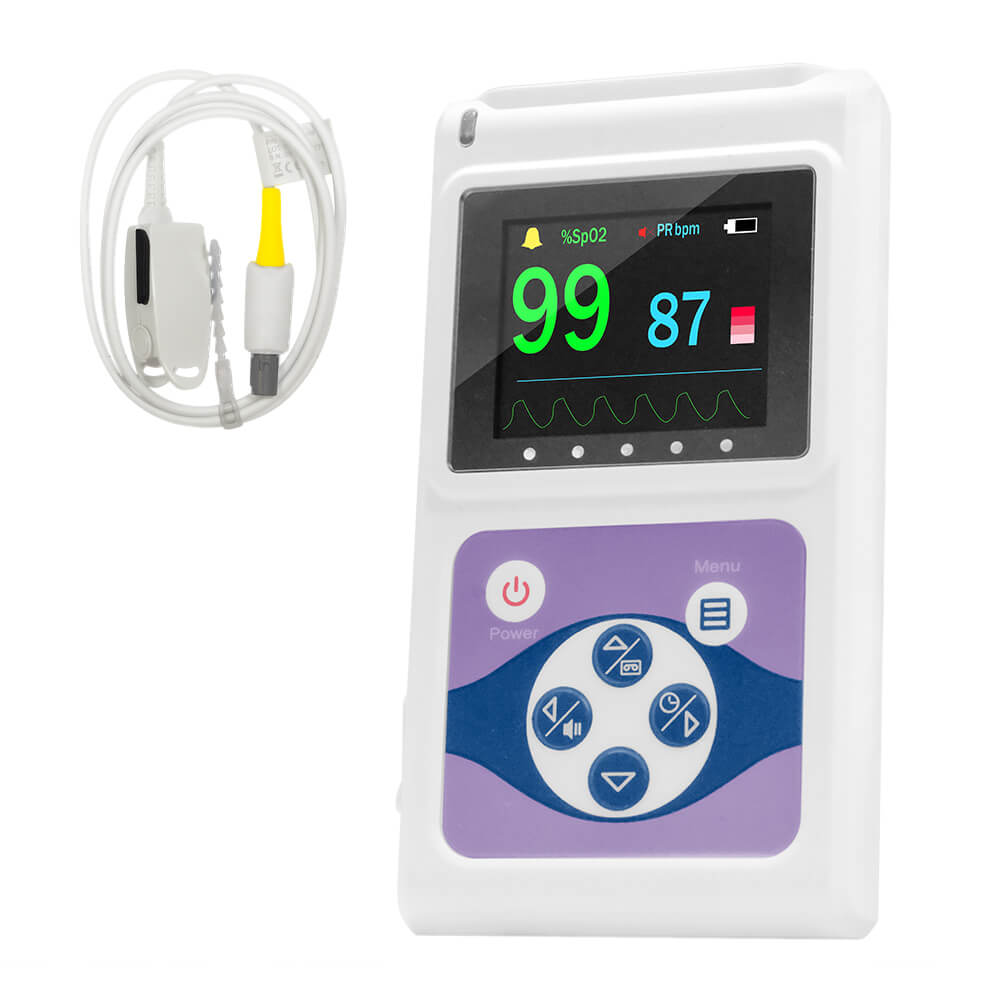

CMS-60D Handheld Pulse Oximeter

$104.95 104.95

Available Options

The CMS60D Handheld Pulse Oximeter is FDA-approved for digital measurements of SpO2 and pulse rate. Users can select a probe type that meets their requirements for obtaining an accurate measurement. The external probe sensors use comfortable silicone materials and are available in adult, pediatric, soft, wrap, and ear clip models. The CMS60D measures activity levels in the body with an accuracy of ±2bpm for pulse rate and ±2% for blood oxygen saturation levels. External probes are plugged directly into the communication cable socket or through the available probe adapter.

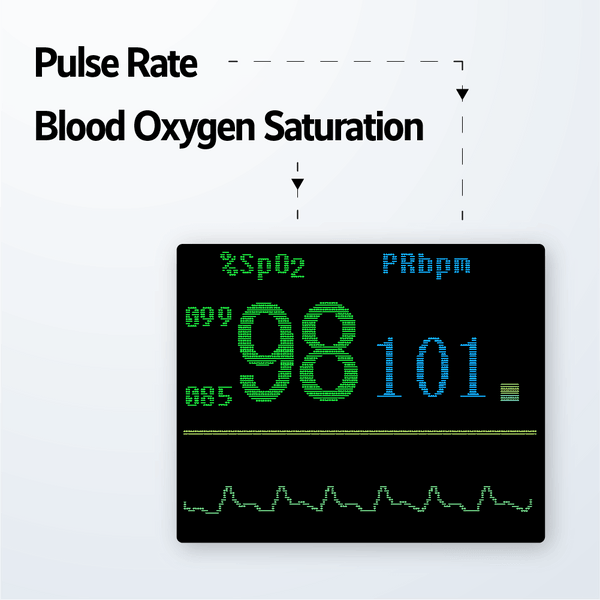

The 1.8” color OLED screen displays detailed measurement results using sharp text and images. Measurement results update in real-time as a numeric value, bar graph, and waveform animation. Within the CMS60D’s on-screen menu, users can adjust options for probe usage, measurement limit alerts, the clock function, the pulse rate tone indicator, and select the “Routine Check Mode” or “Continuous Monitoring Mode.” Large buttons located on the front of the monitor operate the device’s measurement functions and menu navigation. The screen’s adjustable brightness level enables comfortable viewing in the presence of dark or low-light conditions.

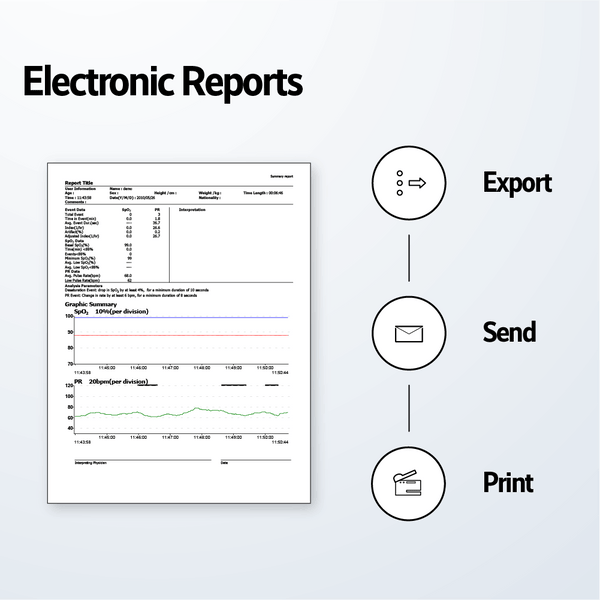

Data history can be transferred to a computer for detailed reference or analysis by a medical health professional. This blood oxygen meter integrates with the included software to link to a PC for transferring data via the USB transfer cable accessory. A continuous monitoring mode is available in the software for viewing the monitor’s input readings. Users can also record and store tests directly on the machine’s built-in storage.





Package Includes:

  1. CMS-60D Unit
  2. 2x AA Batteries
  3. USB Connector Cord
  4. Instruction manual

 Software Download (6.06 MB)



Features

  • Routine Check Mode and Continuous Monitoring Mode
  • Sync with PC based Software (Win XP and Win Vista)
  • Display:1.8" Color TFT
  • Resolution:160x96
  • Display Mode: Display Direction adjustable
  • Indicator: Power indicator, Alarm sound, Pulse tone
  • Interface: Socket for connecting SPO2 sensors and Socket for communication cables
  • Power Supply: 2 AA Size Batteries DC 3V, <60MA
  • Record: Data can be recorded up to 24 hours
  • Alarm: Adjustable High and Low limits.



CMS-60D Product Video






Soft Probe

CMS60C Soft Probe

Wrap Probe

CMS60C Wrap Probe

Ear Clip Probe

CMS60C Ear Clip Probe

Probe Adapter

CMS60C Probe Adapter



Extended Specifications:

SpO2 Measuring Range: 0% ~ 100% (the resolution is 1%)
SpO2 Accuracy: 70% ~ 100%: ±2%, below 70% unspecified
Pulse Rate Measuring Range: 30bpm ~ 250bpm (the resolution is 1bpm)
Pulse Rate Accuracy: ±2bpm or ±2% (select larger)
Battery Requirement: 2x AA
Oximeter Probe Wavelength: 660nm 880nm
Dimensions: 110(L) x 60(W) x 23(H) mm
Weight: ~122g (including AA batteries)
