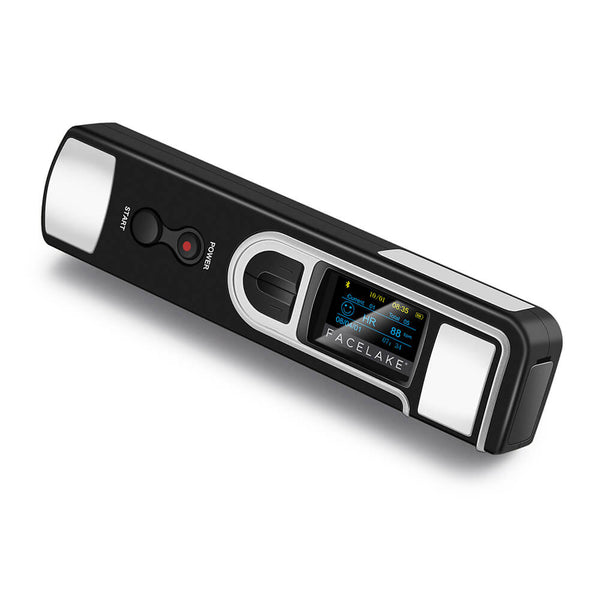

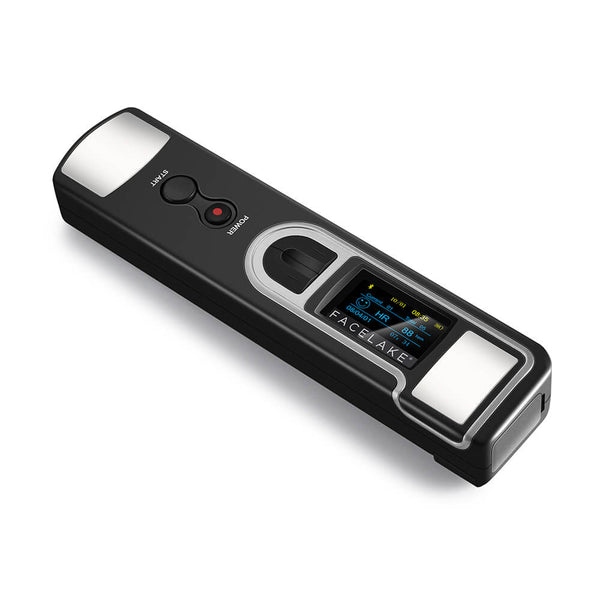

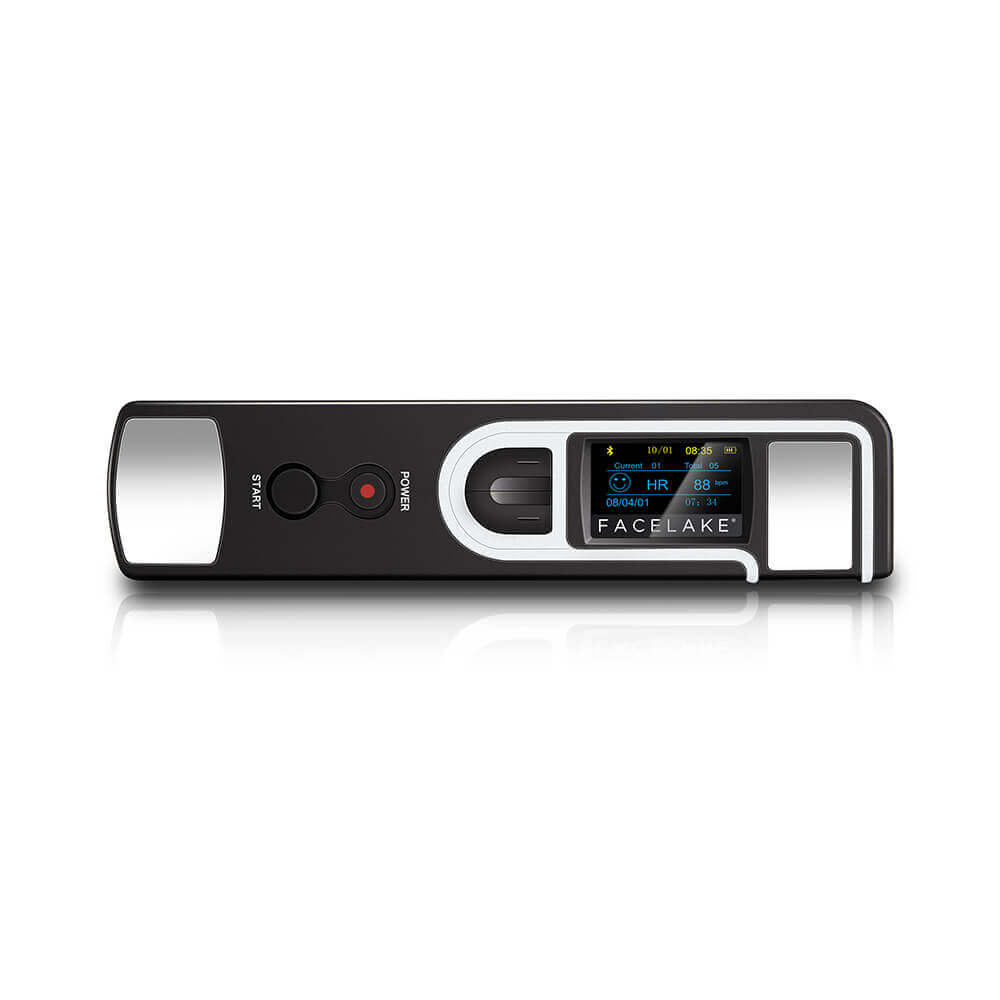

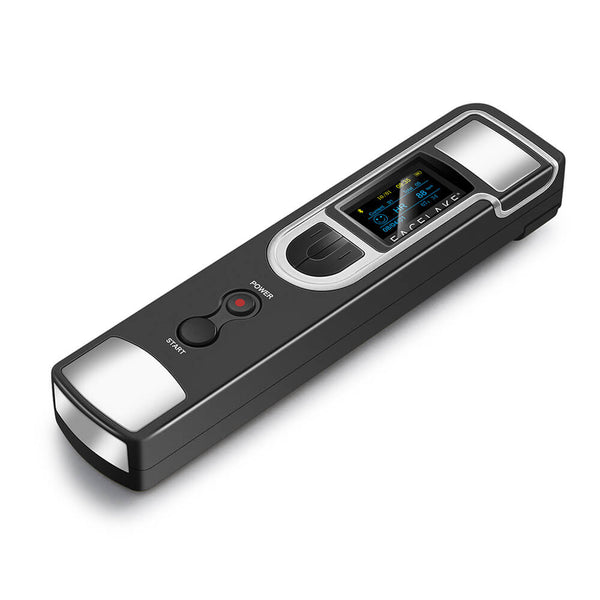

FL30 ECG Monitor, ECG Pen

$49.95 49.95

The FL30 EKG monitor can be used to take EKG readings anytime and anywhere without the need to apply wires, cables or gels. Simply use your hands to hold the monitor as it detects heart rate, rhythm, and symptoms in under 30 seconds.






Note: This device is not intended to diagnose or treat any medical condition or disease. Data on the device is for reference purposes and is not intended to substitute advice given by a physician, pharmacist, or other licensed health-care professional. You should not use this information as self-diagnosis or for treating a health problem or disease. Contact your health-care provider immediately if you have any cardiac symptoms. This device is intended to be used for initial evaluation as reference only.

Technical Specifications

Dimension and Weight:
Dimensions 130mm (L) * 30mm (W) * 20mm (H)
Weight: 110g (with alkaline batteries)

Environmental Requirements:
Operating temperature 5°C - 40°C
Storage temperature -20°C - 70°C
Operating humidity 15% ~93%, no condensation
Storage humidity ≤ 93%, no condensation
Storage Atmospheric pressure 86kPa - 106kPa
Operating Atmospheric pressure 70kPa - 106kPa

Display:
Screen type OLED
Parameter Heart Rate

ECG Measurement:
ECG bandwidth 1Hz - 40Hz
Sampling rate 250Hz
Measuring range 30bpm - 240bpm
Measuring accuracy 30 - 100bpm ≤ ±2bpm
101 - 240bpm: ±4bpm or 2% (the smaller)

Features:
Small, portable, and easy to operate
Fast measurement in just 30 seconds
20 records of heart rate, measurement result, and data analysis
Display of heart rate, measurement result, date, time, and battery status on the OLED screen
Auto power-off while no key is pressed in 10, 30, 60, 120 (can be set) seconds
Auto-evaluation based on detected heart data
Data Review freely

Data Storage:
Data and heart rate strips storage
Heart rate strips: 20-measurement result storage

Power Supply:
2 AAA alkaline batteries

Classification:
Type of protection: Internally powered equipment
Degree of protection: CF type
Safety: IEC 60601-1

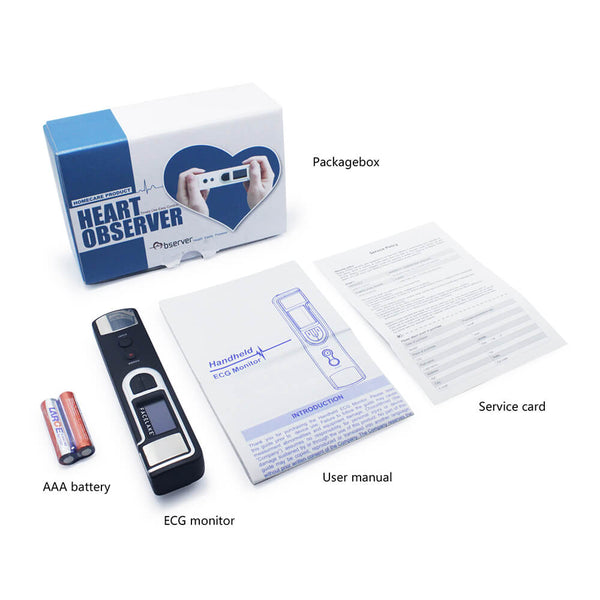

Accessories:
Two AAA-size Batteries
One Instruction manual
One sheet of material
One Quick Operation Guide
