The FDA-approved CMS-60C Handheld Pulse Oximeter is powered by the included SpO2 data management software and real-time health alert system. SpO2 and pulse rate measurements are swiftly obtained through the included padded external oximeter probe. The color LCD display provides clear visual representations of body information in a numeric value, bar graph image, and waveform image. The device is suitable for use in hospitals, community medical treatment, sports health care, and home family care.
The pulse oximeter is small and lightweight for convenient portability. The rechargeable lithium-ion battery provides up to 26 hours of working battery life. A standard USB mini cable is used for charging (included).

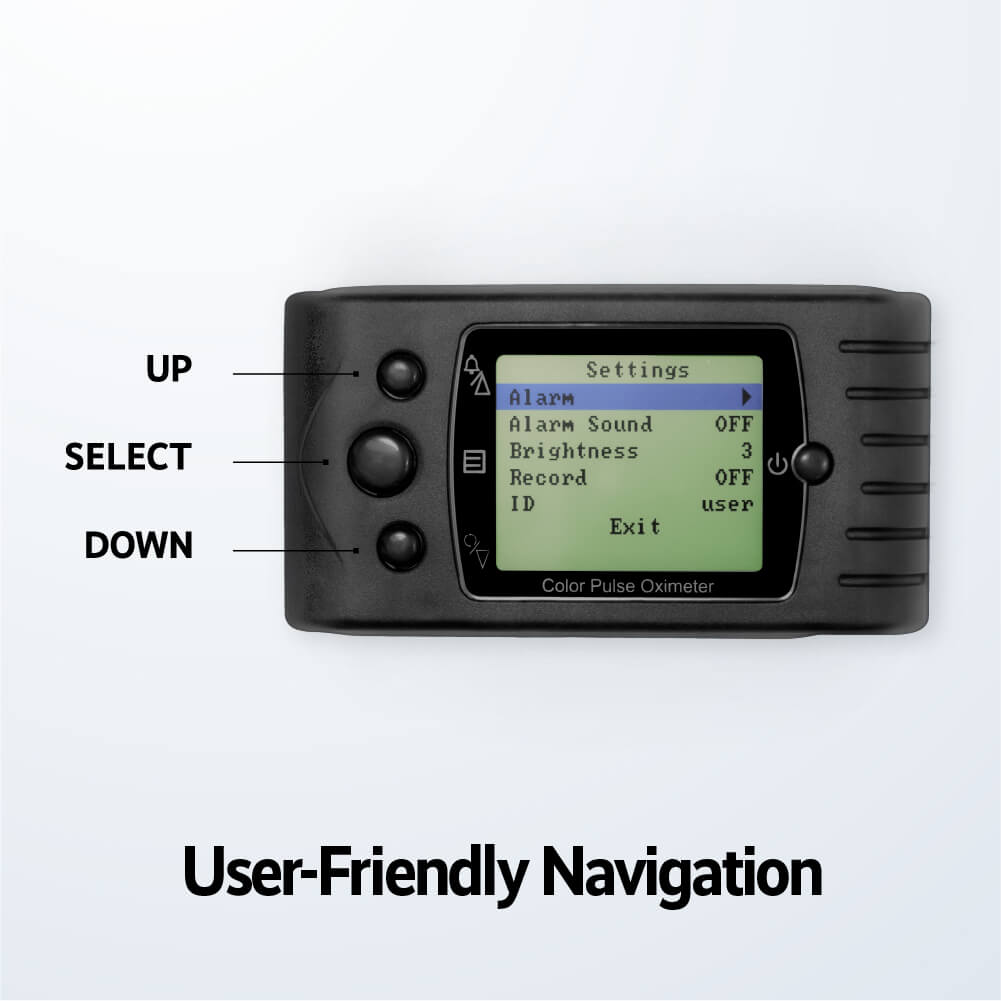

A 1.8” TFT color LCD display provides a view of all health functions on the CMS-60C. The onscreen menu is operated using the device’s simple button layout. Text and images are clearly displayed on the sharp backlit screen.
Auditory and visual alarms in the CMS-60C activate when the oximeter reads body activity levels that are above or below the user’s set limits. Screen brightness can be adjusted between three different modes that enable use in dark or low-light conditions. A voltage indicator alerts to the presence of low-voltage levels in the unit that may have an affect on measurement accuracy.
Up to 24 hours worth of information data can be transferred and stored on your computer using the included software. The transferred data can then be used for detailed reference or analysis by a medical health professional. The software also features a real-time view of data that is obtained by the CMS-60C.

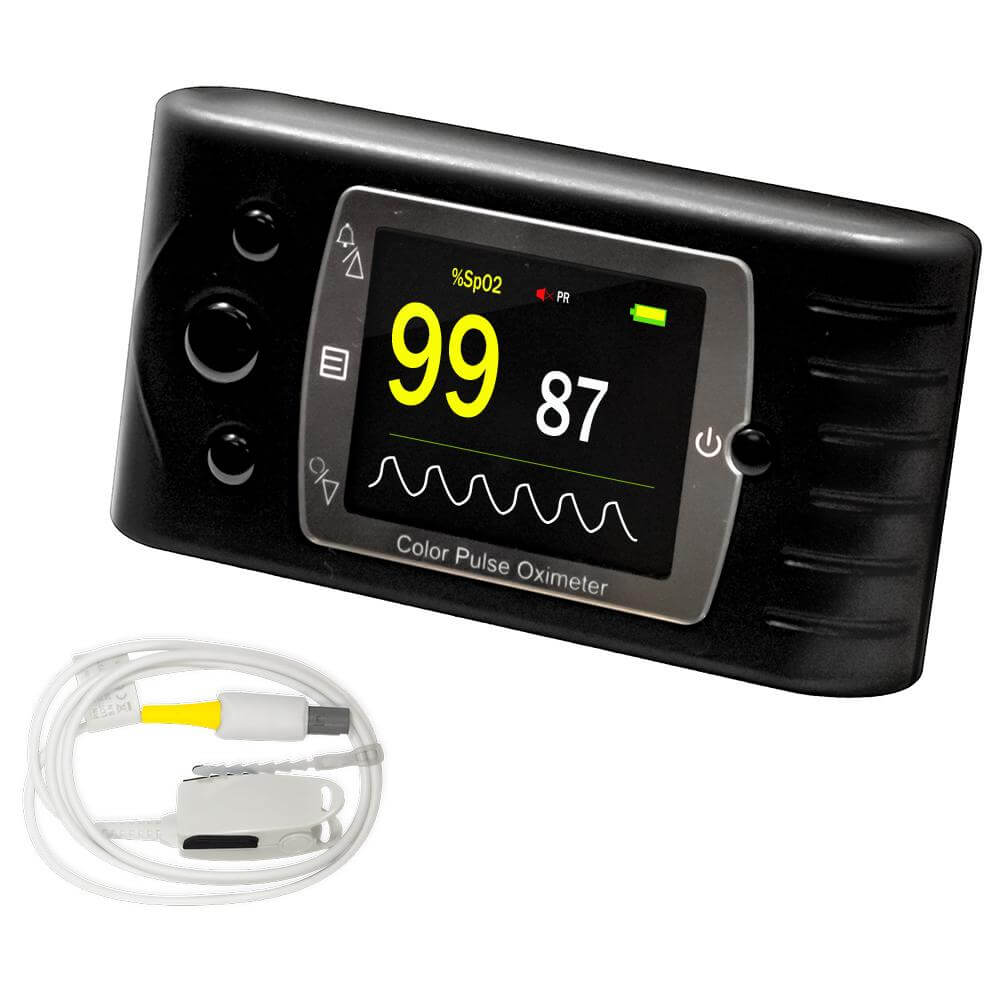

- CMS-60C Unit
- External Finger Oximeter Probe
- DC Power Adapter Plug
- USB Connector Cord
- Instruction manual
CMS-60C Product Video
- SpO₂ Parameter Specification
Measuring range: 0%~100%, (the resolution is 1%)
70%~100%: ±2%, Below 70% underspecified
- Pulse Parameter Specification
Measuring range: 30bpm~250bpm, (the resolution is 1bpm)
±2bpm or ±2% (select larger)
- Battery requirement
Voltage 3.7 rechargeable lithium battery x 1
- Power Adapter
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 5 VDC
Output Current: 1A
- Oximeter Probe
Wavelength: 660nm 880nm

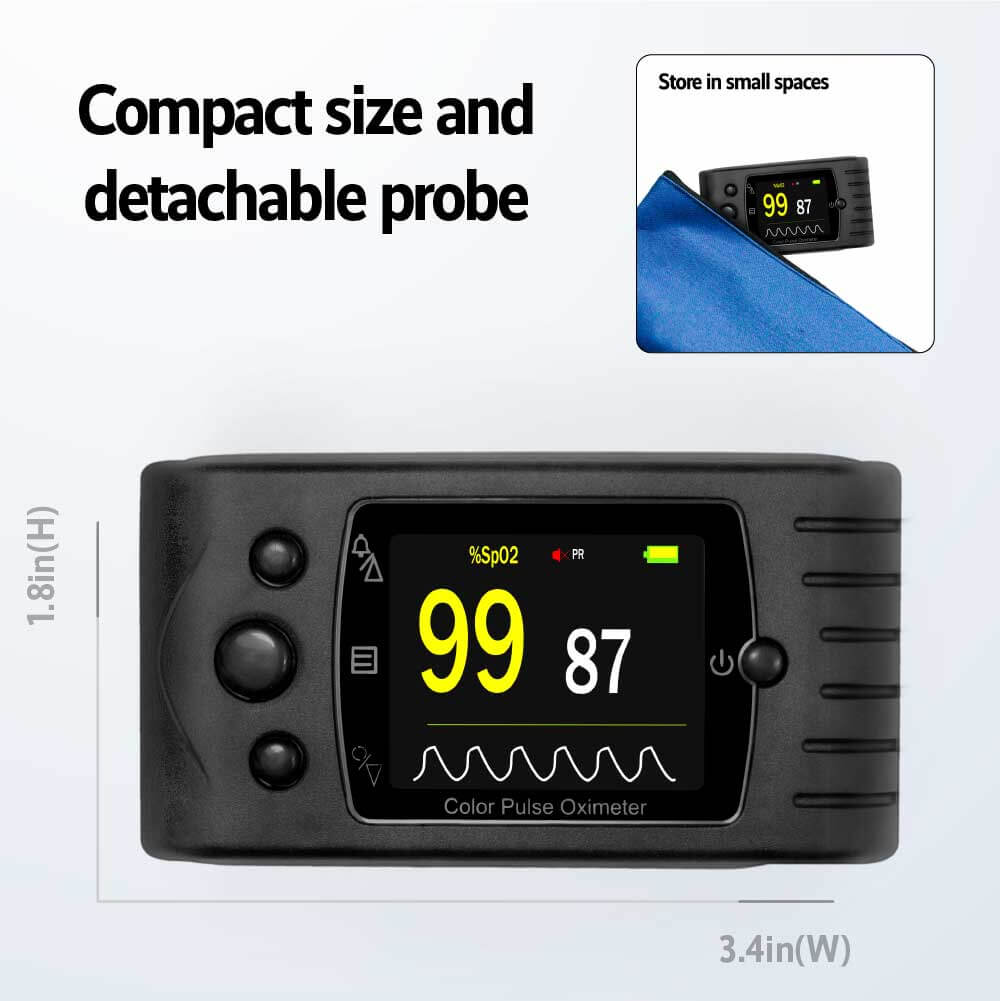

- Dimensions and Weight
Dimensions: 87(L) x 45(W) x 22(H) mm
Weight: About 175g (including the lithium battery)
