FD300 Fetal Doppler

$39.95 39.95

Available Options

FD300 Fetal Doppler

Listen and even record your baby's heartbeat at home or on the go from as early as 12 weeks of pregnancy! The FD300 Fetal Doppler has the same capabilities as the FD200 but with a few more additional features listed below. Give yourself the peace of mind that your baby is safe and well at all times throughout your pregnancy.

This fetal doppler can be connected with a computer to record the baby's heart beat to be shared with family and friends via email.

1 year warranty & 30 day 100% money back guarantee if you're not fully satisfied.

  • FDA & CE Approved

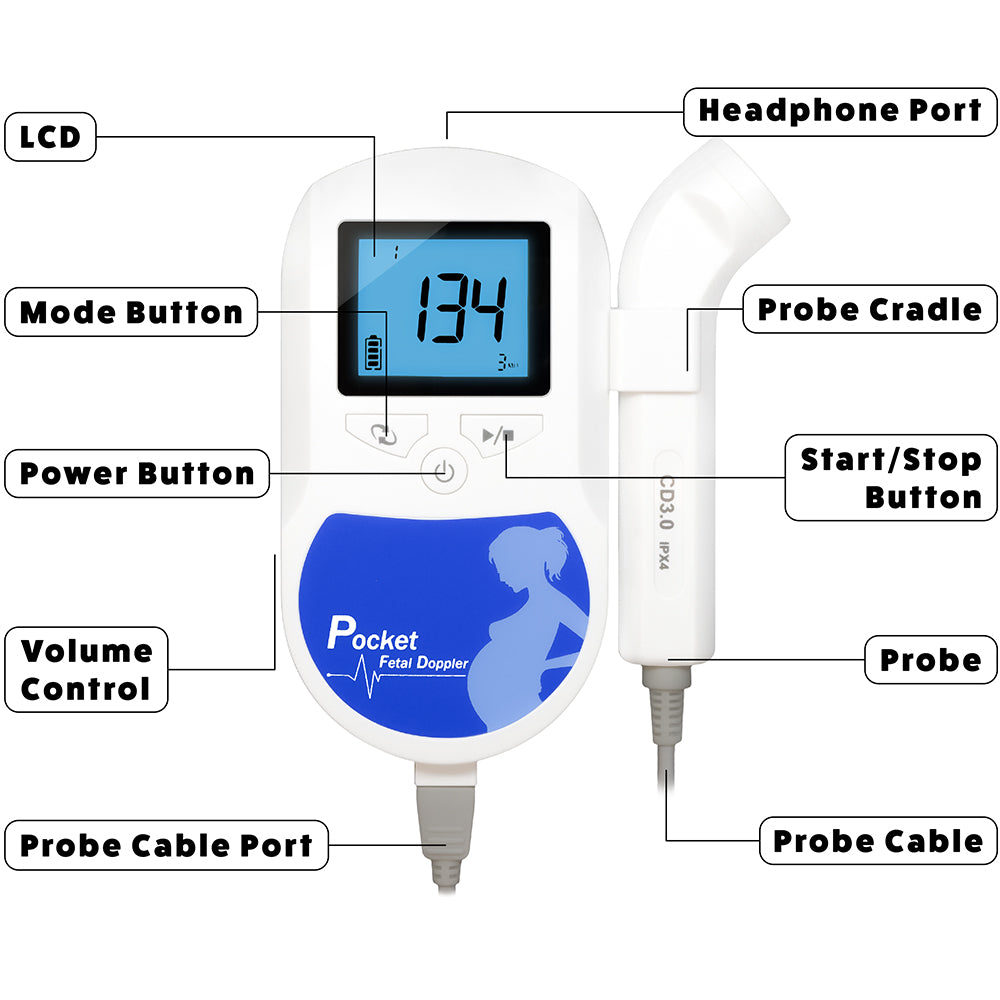

  • Listen through the powerful built-in speaker or with headphones
  • Easy to read LCD screen with on/off back light mode
  • digital fetal heart rate displayed
  • Auto-off feature & low battery consumption to ensures many hours of usage
  • Battery icon indicating remaining battery life (AA batteries)
  • Weights less than 1/2 a pound
  • Compact design with buttons designed to withstand repeated usage without wearing or breaking

FD300 additional features:

  • higher quality probe resulting in less static
  • higher quality LCD display for brighter viewing

Three modes of Operation:

  • Mode 1: a heart icon is displayed when the heartbeat is detected and the real-time hear t rate is displayed numerically
  • Mode 2: a heart icon is displayed when the heartbeat is detected and it averages the heart rate for a more stable reading
  • Mode 3: this mode allows the user to calculate an average heart rate over a specific period of time by manually pushing a button to start & stop the time

Choosing Probes:

  • 3 Mhz: The 3 MHz is an early term and general purpose Doppler probe. It will work very well through most full term pregnancies. A 3 Mhz is more sensitive than a 2 Mhz probe and can pick up baby's heartbeat as early as 8-10 weeks gestation.
  • 2 Mhz: Designed to accommodate late term and obese pregnancies since it works best at 10 cm and larger depths.

Package Includes:

  • doppler body
  • 3 Mhz probe
  • headphones
  • 60 Gram ultrasound gel tube (good for over 50 tests)
  • 2 AA batteries
  • 1 year warranty

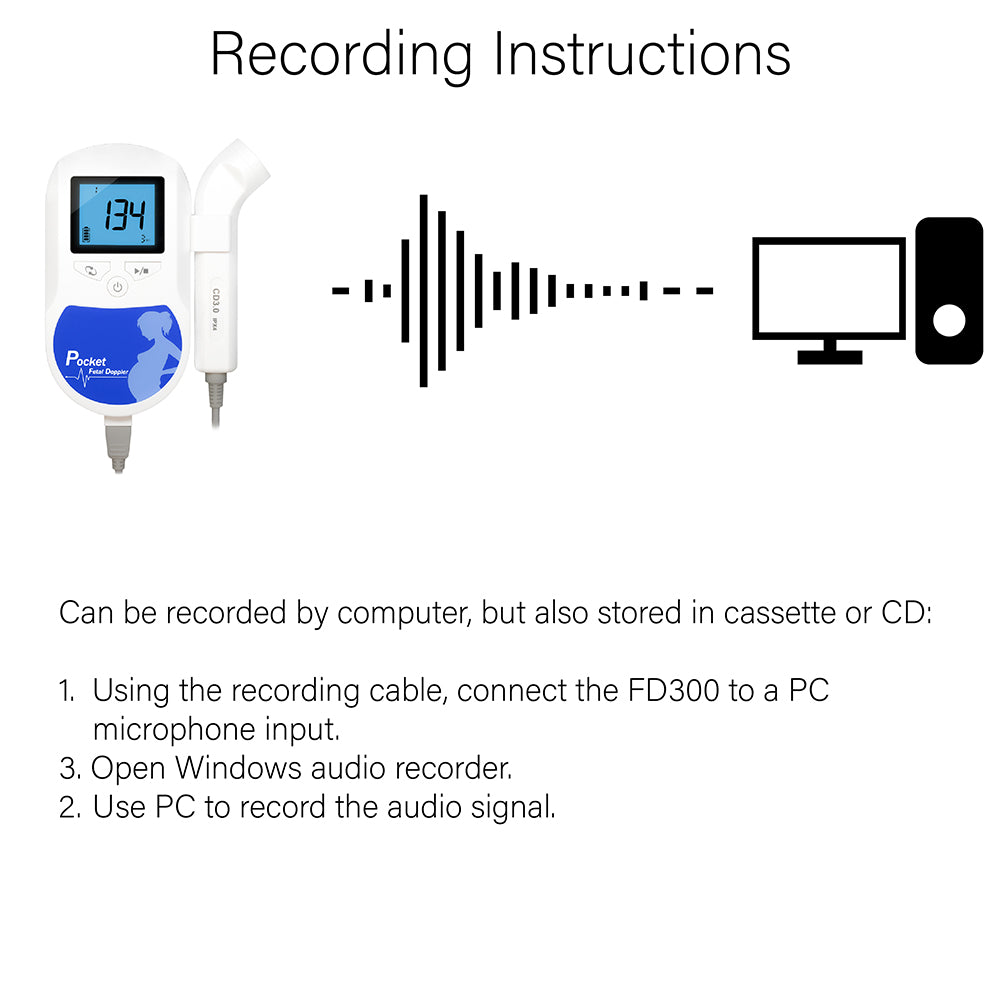

Recording Cable (optional)
Digital sound recording. You will be able to record those first sounds for life, record your unborn baby's heartbeat. It not only can be recorded by the computer, but also stored in cassette or CD.

Safety:

Complies with: IEC 60601-1:1988+A1:1991+A2:1995 Classification:
* Anti-electroshock Type: Internally powered equipment.
* Anti-electroshock Degree: Type B applied part
* Harmful Liquid Proof Degree:
* Main unit :Ordinary equipment (sealed equipment without liquid proof).
* Probe: Prevent from water splashing, degree of protection: IPX4.
*Degree of Safety in Presence of Flammable Gases: Equipment not suitable for use in
* presence of flammable gases.
* Working System: Continuous running equipment.
* EMC: Group I Class B.
* Suitable Using Range: Suitable for use after the 12th week of pregnancy.

Physical Characteristic

* Size: 135mm (Length) *92mm (Width) *29 (Height) mm
* Weight: About 245g (including batteries)

Working Environment

* Temperature: +5℃ - +40℃
* Humidity: <=80%
* Atmospheric Pressure: 70 kPa - l06kPa Transport and Storage:
* Temperature: -10℃ - +55℃
* Humidity: <=93%
* Atmospheric Pressure: 50 kPa-l06kPa Display: 45mm * 25mm LCD display
* FHR Measuring Range: 50-240BPM (BPM: beat per minute)
* Resolution: 1BPM
* Accuracy: (+/-)2BPM
* Power consumption:<0.8W
* Auto Shut-OFF: After 1 minute no signal, power off automatically.
* Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

Probe:
* Nominal Frequency: 2.0MHz or 3Mhz, or 8Mhz
* Working Frequency: 2.0MHz(+/-)10% or 3Mhz  or 8Mhz
* P-: <0.5MPa
* Iob: <10 mW/cm2
* Ispta: <50mW/cm2
* Ultrasonic Output Intensity: Isata<5 mW/cm2
* Ultrasonic Output Power: P < 10 mW
* Working Mode: Continuous wave Doppler
* Effective Radiating Area of Transducer: 157mm2 (+/-)15%
